CONVERSION KIT NOVARA S
99.00402.0V037 LEVO3 53W SKII (3000K)/O3 KOKILLENGUSS
CONVERSION KIT NOVARA S

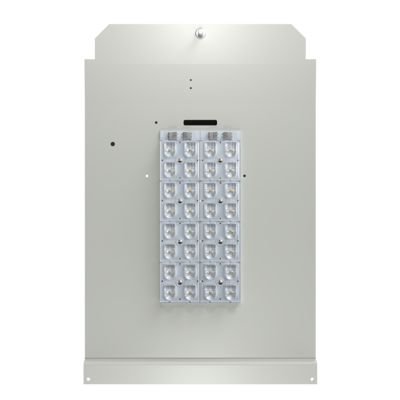

Conversion Kit NOVARA S
For luminaires in chill casting - after 2005 !
Support plate made of aluminum
Light distribution: Asymmetrical, optimised for illuminance
(Characteristic: For main road illumination)
Elec. equip.: LED LEVO3 O3 approx. 53W (3000K)
With electronical ballast (220-240V/50-60Hz)
- with CLM (350-500 mA, 37-53W)
- without CLM (500mA, 53W)
Protection rating II
Following versions are available:
Without dimming and without CLM
(luminous output degradation compensation)
Or with dimming via DALI, StepDim or AstroDim
AND/OR with CLM (please specify on your purchase order!)
Technical specifications
- Safety class
- II
- Rated input power
- 53 W
