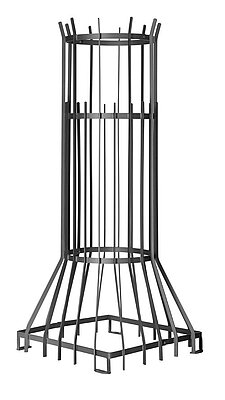

Tree guard ALGARVE Q 2
30.31302.0V002 MONTAGE BS
![](/fileadmin/_processed_/5/7/csm_Alga_BSG_Q840_T1_70f603f7a4.jpg)
Steel, galvanised. Bolted to tree grate. With level compensation.
ALGARVE Q:
Suitable for tree grates with square inner opening. Height 1820 mm
ALGARVE R:
Suitable for tree grates with round inner opening. Height 1820 mm
ALGARVE RK:
Suitable for tree grates with round inner opening. Height 1375 mm
Tree guard ALGARVE Q 2
Tree guard ALGARVE Q 2
Galvanised steel
Dimensions: Top ΓΈ 488 mm ; bottom 777 x 777 mm
Total height: 1820 mm
With fixation set D for installation Tree-grate
With level compensation
Colour: RAL 9011
Technical specifications
- Height [mm]
- 1820
- Dimensions [mm]
- 777 x 777
Drawing
![](/fileadmin/assets/images/Algarve_Q_SM.jpg)
